Update.

I want to notify, that I am still working on the project. In general I am learning on boot/recovery process of Amlogic Devices. I will continue because what I learn should apply not only to GTCOMBO, but to most E2 Arm devices. So I am learning anyway.

Now my GTCOMBO purchase is in trouble. So I do not know when I will be receiving it.

There are a few obstacles that are making this project hard or destine to fail.

The SAT Hack community has been for long here. But to survive, hackers need to have as much freedom to modify their stuff so that it finally can obtain positives results. So Lock bootloaders or Force updated on devices are the enemy of a hacker. If a hacker find that a new firmware not longer work, he then try to rollback to the previous. But if a Lock bootloader prevent rollback, it is then endgame. There is more to it but lets try to make it short. Now USA intelligence N S A, long intervening in Phone OS development to ensure that commerce on phones is safe. And Android/Iphone user got custom to force updates. Now an Android Satellite receiver can NOT be like phones. As I explain your TV viewing gets on jeopardy.

It seems at the moment that GTMEDIA is treating its Android Satellite receivers like Phones with force updates. I do not own GTMEDIA to be sure that possible the phone bootloader may be lock too. If we can not install what we want as hackers on the Receiver, then this device looses quickly its potential as a platform.

I did download to have a quick look:

GTMEDIA_GTCOMBO_V2.0_C20.A9.1.11_19102021.rar

GTCOMBO_v2.0_C20.A9.1.24_20230717.img

GTCOMBO_v2.0_C20.A9.1.24_20230717.zip

I did not found any reference to "aml_autoscript". This not necessary means we can not auto boot without Reset. There should be always the long way option to use the Update&Backup APK to force running the script from Android Menu.

There was a uboot multiboot. Sadly all links I found for the original uboot multiboot where removed from Internet!! Weird.

New custom uboot can also do the trick in the even we need a simple USB auto boot method.

Tomorow if I have spare time I may try to unpack Working Libreelect boot.img, and see if I can modify "init" to auto chroot into Enigma 2 partition.

Then I guess see if I can reuse working remote control config from libreeelect and substituye it on old Enigma. See if I got ETH0 and WLAN working.

Again, I do not need a working MXQPRO4K with E2. I am doing it as a practice experience.

This MXQPRO4K future may be to stay in Libreelect or with my own custom copy of Debian.

PLEASE I am not asking you to do anything.

Before you do anything it is important to backup your Android, I normally used TWRP.

Now to be honest the very 1rst time, i get to a Linux promt. Then I get a BIG USB or SDCARD. and copy ALL hiden partitions.

To get all partitions names I do

# cat /proc/partitions
# ls -la /dev/block

Then I prepare a bash script. Here the one I use with MXQPRO4K

#! /system/bin/sh


ls -la /dev > dev.txt
ls -la /dev/block > block.txt
cat /proc/partitions > partitions.txt
cat /proc/device-tree/amlogic-dt-id > amlogic-dt-id.txt
dd if=/dev/block/cache of=cache.img bs=1024
dd if=/dev/block/logo of=logo.img bs=1024
dd if=/dev/block/recovery of=recovery.img bs=1024
dd if=/dev/block/rsv of=rsv.img bs=1024
dd if=/dev/block/tee of=tee.img bs=1024
dd if=/dev/block/crypt of=crypt.img bs=1024
dd if=/dev/block/misc of=misc.img bs=1024
dd if=/dev/block/instaboot of=instaboot.img bs=1024
dd if=/dev/block/boot of=boot.img bs=1024
dd if=/dev/block/system of=system.img bs=1024
dd if=/dev/block/data of=data.img bs=1024
dd if=/dev/bootloader of=bootloader.img bs=1024
dd if=/dev/dtb of=dtb.img bs=1024

You need a USB bigger that your flash memory.

Then in a PC I format this USB ( Empty). I normally use Linux ext4 partitions. As Android do not like to execute bash on FAT32.

And I place the last bash script on it.

Boot Android, open a terminal, Yes you need a Terminal APK.

manually mount the ext4 partition, then execute batch script. Depending on the size of your FLASH it may take long time.

If you want you can always comment /dev/block/data & /dev/block/cache. As this are not critical. They get empty when you do Factory WIPE/Reset.

Again, this is for reference. As you seems interested. I am NOT asking you to do anything. dd is a POWERFULL command, just as dangerous!!

Windows users call "dd" Linux "Disk Destroyer" command!!

UPss I just realize I miss a step where I mount SDA2. Just in case SDA2 is USB secon partition that holds Enigma 2. So complete it should be like this

CHRDIR=/storage/sda2
mkdir -p $CHRDIR
mount -t=ext4 /dev/block/sda2 $CHRDIR
mount --bind /dev $CHRDIR/dev
mount --bind /proc $CHRDIR/proc
mount --bind /sys $CHRDIR/sys
chroot $CHRDIR
./linuxrc

It may sound strange, but kernel work so good that I do all using HDMI as monitor. But to make it easy I have a usb mouse and a usb keyboard.

Now PLEASE do not forget I have no GTCOMBO. My test subject is just another Chinese Android TB Box called MXQPRO4K.

IMPORTANT:

For GTCOMBO, the stopping problem could be the DVB Tunner. So we need one of three thing to happen.

* GT Media get nice with us and place at github working Kernel Sources

* We try to build one of the latest Generic Amlogic Kernel, with the hope that drivers are already up.

* At a last minute resource, we can try to use GTCOMBO's current Kernel (boot.img). Then we unpack the kernel, make any necessary changes to initramfs, init or even any /etc/init.d files. Then repack. In the hope that Androids own kernel is enough to chroot into Enigma 2.

What kernel version your GTCOMBO has? In terminal do uname -a.

Now, I am a Linux guy. In reality at the end I do not need Enigma2. See Enigma 2 is just in fact another Linux Distribution just like Ubuntu. Simple solution for me is using one of the already Linux versions for AMlogic, like: LibreElect, OpenElect, Armbian. But I most likely install at the end my own minimalist build of Debian using bootstrap. On top I will install "tvheadend" and "oscam". In this way I can watch Sat / Terrestrial TV from any of my Android devices or PC in my local LAN.

I used to do this with a PC and a USB PCSAT. But GTCOMBO will be better as less power consumption will be require.

Please ignore or even delete my post if you feel like.

But Title is "Does GTMEDIA devices update EMM`s for TVSat card automatically"

And I was responding to a question.

Then some one posted "You're definitely joking, do you know what you're saying?"

I was force to clarify that I am not crazy.

But as I say if moderators feel it out of place, please delete my responds to a request.

1) I installed “backup v3.vitmod.k3pro.img” in a 8GB old USB I had using, “LibreELEC.USB-SD.Creator.Win32”

2) I replaced original “dtb.img”, because I have a different platform, NOT K3PRO, instead MXQPRO4K. So I use a generic “gxbb_p201.dtb” and renamed “dtb.img”.

3) I try to boot but failed to get in to Enigma2. I assume it is wrong kernel ( Boot image ). But I also assume ENIGMA 2 partition should be ok/useful.

4) knowing that kernel from LibreELEC-S905.arm-8.2-8.2.3.1 works, I then proceeded to get it. From LibreELEC-S905.arm-8.2-8.2.3.1 partition 2, I copied kernel.img and renamed boot.img. Again, as I know this kernel works.

5) I mounted in PC the USB with v3.vitmod.k3pro, This time I replace boot.img with my librelect one, that I prepare in step 2.

6) I place the USB in my MXQPRO4K and proceeded to plugin the power. Please notice that we do not need to press Reset button as it uses “aml_autoscript” that takes care of it. NICE.

7) As expected kernel start booting. But as I have not modified the “init” file it gets to a point where it fail to find “Libreelect” image. Sure the v3.vitmod.k3pro have no “Libreelect” image to mount. So as init fail, it drops me to a #promt. NICE I have a working promt.

8) I then proceeded to mount (USB second partition) SDA2 and to “chroot” to it, just to finaly execute ENIGMA 2 real Init.

CHRDIR=/storage/sda2
mkdir -p $CHRDIR
mount --bind /dev $CHRDIR/dev
mount --bind /proc $CHRDIR/proc
mount --bind /sys $CHRDIR/sys
chroot $CHRDIR
./linuxrc

9) SUCCESS, I did run old v3.vitmod.k3pro Enigma2 in my MXQBOX4K. I was force to use a keyboard as my remote control is not for what it was build. Clearly I have no DVB-S reception. My box have no sat tuner.

Please notice I have spent lotss of time reading here an there. And that in fact I have not change or compile a single line of code. This 1rst step only serve to feel relax knowing that some how, there should be a way to compile E2 for one of this Chinese TV boxes.

Quote from gobi2000

You're definitely joking, do you know what you're saying?

SKS is not something new. It was used in South America where there is a lot of land faraway from civilithaction where there was no terrestrial Internet.

Here a definition:

Quote from https://www.computerlanguage.com/results.php?definition=satellite+key+sharing

Redirected from: satellite key sharing, Definition: card sharing

The illegal access to pay TV, which occurs primarily in Europe and South America. Card sharing sends the decryption codes (code words) from the smart card in the receiver of a legitimate pay TV subscriber to an illegal server on the Internet. Using a modified set-top box (receiver), non-paying users acquire the codes from the server. Card sharing is also known as Internet key sharing (IKS), satellite key sharing (SKS) and control word (CW) sharing.

I guess GTMEDIA M7X is the latest. But it is ONLY for Brazil footprint.

Sorry if it sound weird for the Top North part of the World. I witch if was my Idea or invention.

Learning every day.

I have to remember to post links of github inside code. If not link is lost and instead we see those images.. Strange for me!!

PD

This is weird, 1rst images no link. After my post Images have links.... what a day.

I believe that in Brasil they are working SKS

Google for "GTMEDIA M7X DVB-S2 SKS/IKS/CS/M3U,VCM/ACM,Twin Tuner lKS&SKS TV Receiver,realase 70.0°W LyngSat With Brasil CH SKS Free For Life"

SKS is not via Internet but require special twin tuner receiver. Keys arrived via second Sat.

I was surprise I guess we have a new thread as Master G move this here.

What I try to say is,

1) Yes do all you can do to feel more safe. Do not listen to my observations ;)

2) But please do not think VPNs give you full protection.

3) Still want to use any sort of VPN. Then do it at Home Router level, So that ALL internet traffic get mix. Your IKS then get hidden inside that mix.

I found reading many post like that one myself.

It is nice to see many stuff to read, but very distracting.

Every post have potential good information. But as receivers have different platform/modules, most will leave to not working firmware.

As I said previous post, I will stop reading and trying to start preparing Serial Console so that I can read the errors they produce. Then see how I can boot to a busybox prompt. Then I see if I can make any of those kernel sources to work. Your post show some Ideas.

https://linux-meson.com/
https://linux-meson.com/howto.html
https://github.com/CoreELEC/linux-amlogic
https://github.com/LibreELEC/linux-amlogic
http://openlinux.amlogic.com/mw/index.php?title=Openlinux_SDK
http://openlinux.amlogic.com/mw/index.php?title=Documentation
https://github.com/khadas
https://github.com/Android-Amlogic
https://github.com/Android-Amlogic/android_device_amlogic
https://github.com/Android-Amlogic/android_device_amlogic/tree/master/p201

And many other potential candidates.

Now as I have good results with Libreelect I may try first

GitHub - LibreELEC/linux-amlogic: the Linux kernel for Amlogic SoC devices

the Linux kernel for Amlogic SoC devices. Contribute to LibreELEC/linux-amlogic development by creating an account on GitHub.

github.com

and or

Android-Amlogic

Android-Amlogic has 6 repositories available. Follow their code on GitHub.

github.com

So 1rst I need to so some small repairs to may Laptop then I will move into Amlogic.

Hopefully I will have some good beginning this week.

So after hours of reading here an there I decoded to download from this thread RE: Enigma2 for KI, KII & KIII

In particular

vitmod 6 backupV3

backup v3.vitmod.k3pro.img

www.mediafire.com

I use my old https://libreelec.dtech.hu/mis…evice_trees/gxbb_p201.dtb

but renamed as dtb.img as before.

It did not work as expected. It will try to boot but do not pass. It in fact loop on booting. But Interestingly this firmware contain code that does not require the Reset button to be press!! It will be Nice to learn from it. And I still have hopes that that old enigma OS can still be use as reference.

What next?

Will study this new boot process, as it is the default way Amlogic boot into USB .

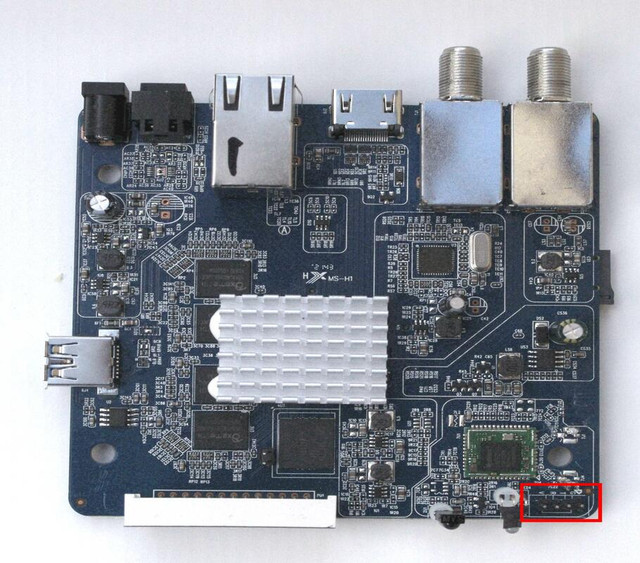

I need to set hardware USBtoSerial so that I can get access to Linux Console messages.

I will try to hack boot process and try to boot into a busybox-sh promt.

Again if any one knows the creation process done to create this Enigma2 for KI, KII & KIII

I will deeply apreciate.

At the moment I do not own any GT Media devices. Waiting for my 1rst to arrived. I do not want to step my self over not solid ground, but be aware that there are questions that I will not expect to receive answers.

GT Media produce Sat receivers.

Mars at most is manage by some underground team.

So they are not the same entity. I will not expect neither to see GT Media nor MARS team answering here anyway.

Wiregard, I guess best is if we open a new thread on it. I bet you it will have many pages of replays.

It is good you are trying to protect the best you can do. But do not have to much fate on it.

A quick example. 90% of ALL internet connection have some sort of security on it. But can it secure me from trouble? That is another question.

Lets take this post as sample. Please look at your browser address. You should see "https" it means its encrypted. So NO one should have access to my post information. Yet here you are reading this post. And it is free for reading by anyone signed or not to this forum!!! I know you will say it not the same.

But it is the same concept. One thing is the encrypted digital transaction. Another is what anyone can do after the transaction. And what info we can find if wee look at it. I will not go deeper than this here we can open a new thread for it. In general, my best suggestion is buy you self a low cost programmable router . Install Opensource OS, like Openwrt or DDWRT. Then add any FREE or Pay VPN you can get. Then all your Internet data will get encrypted, Legal and not so legal. All well mix. ButtThis will ONLY protect you from you ISP or Local Institutions. AT the end when your VPN data arrives at the VPN Server it will leave unencrypted to the Internet. It will ALWAYS arrived at the MARS servers without a VPN (Wireguard) protection.

Hopes it helps.

enrique

HEHEHE Look what I found reading here while I was searching for

"Enigma 2 S905"

The basic work has been in fact bee done => RE: Enigma2 for KI, KII & KIII

Quote from mtahirghauri

1. K1 Plus image is for the box having S905 chip in it.

2. This image is installed on a micro SD card not on a flash disk. After burning on micro SD card, boot into it using pin method (to know more about the booting method, please use google).

3. It is new development project and is still in early stage, so please don't expect everything working out of the box.

I only need to find it sources to have a good start.

If anyone knows where to point me, I will appreciate.

Well 1rst step in my objective boot from USB or Ext SdCard on a generic Chinese Amlogic Android Box.

I am so sorry if I have not reported update on my project. I have some personal Issues. Also my GTCOMBO is on trouble and I am not sure when I will be receiving it.

In general I will try to post at least once a week from what I have.

Update on boot from USB.

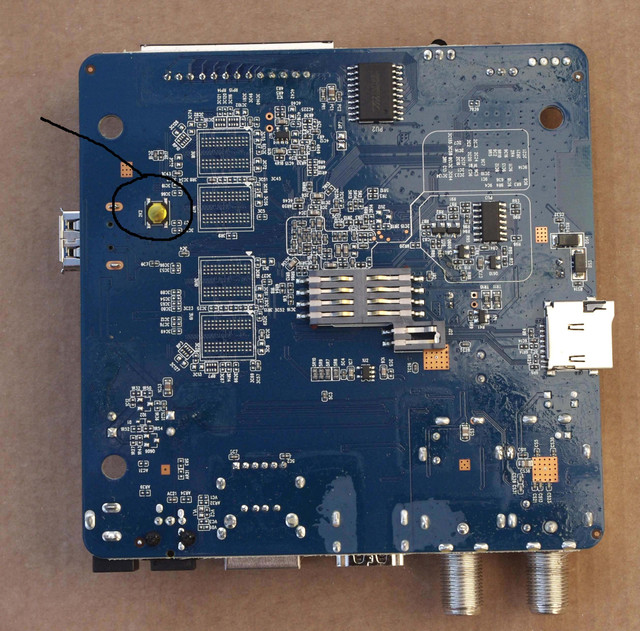

Here I have good news. Amlogic S905 have a FailSafe recovery that provides just that. We can postpone the Finding/Developing a new multiboot boot-loader.

I figure just to spent a few days trying to find out what others do. There are many Open Source Substitute OS replacement. Many around Kodi. To name a few:

Openelect, Freeelect, Armbian, Openwrt, etc.

So I when to Youtube an pick a candidate.

MXQ-PRO 4K AMLOGIC S905 SOC - LibreELEC Install Dual Boot SD Card Tutorial-3LZwX1dwQB8

https://www.youtube.com/watch?v=3LZwX1dwQB8

Files I used to test

Olds, because my MXQPRO4K is an old box.

My box is constructed over gxbb p201 platform. So that is why I selected: gxbb_p201.dtb

If you try with other platform you may require different one.

https://libreelec.dtech.hu/misc/kszaq-archive/
https://libreelec.dtech.hu/misc/kszaq-archive/LibreELEC-S905.arm-8.2-8.2.3.1.img.gz
https://libreelec.dtech.hu/misc/kszaq-archive/device_trees/gxbb_p201.dtb

And to my surprise all when find. I can reboot to a different OS just by pressing Reset while powering device. Complicated for a day to day use. But Simple as a Test mechanism.

PLEASE notice I have not wrote any on my own yet, It is old stuff available to download.

What is Next?

I am going to see if I can Port this boot method, and make Debian 10 Buster to boot on this device.

I will report the following, as it show how Android is not the correct OS for dvb app. It does not have to do with GTMEDIA. It just Android behavior.

Last night I spent a few hours with my old MXQ PRO 4K. A waist of time due to the Android thing!!!

This MXQ PRO 4K was given free to me by a member of my family 2 years ago. He got tire of hitting a button to improve free memory. He figure that hitting the button make the device work better. The Idea was to use the device as a Linux computer Armbian. But after leaving the unit on for quite a few hours, it did start working perfectly. So at the end another member of my family ask me to donate the device for her IPTV viewing. The unit for many month work as expected, with its limitations. For last few month My sister stop using it, she is now onto the social media thing.

So I needed then now a test subject for enigma. I grab the unused thing and guess what!! Yes the thing even did not wanted to boot. So I thought It was broke. After several hours of Internet connection, the device finally got over the boot process and started to install applications!!!

What who did install those things?

There is more, but I will stop here. The point is that after some unused time, Android/Google etc decided that for then was more important to do their needs that to allow me to used the device. So I guess the device had to SYNC several gigabytes of data from my device, then maybe update the OS, to finally update the applications installed. Who knows what else Google did tho the poor thing. Mean while I was so upset that I wanted to bang the device to the floor because I needed for my Enigma 2 project!!!

I am not over my problems, It turns out that there are several versions of this device even with different CPUs. I need to find out what is the correct one so that I can have on hand and ready the correct Firmware. Because most likely I will brick my device several time in my Enigma 2 project!!!

So what is the point in this post?

Just to show how s7up1d is Android. And that we can not always blame manufacturers as Android do its spy on us thing. Yes their so call update and SYNC.

jenseneverest

I am a Linux guy. I do most under Linux.

I have NO experience with Enigma. You then will ask why I am interested in E2?

E2 requires a lot of maintenance from part of users. This makes Android popular to some user with lack of programing experience. But in reality Androids is even worst OS for a DVB app. Android constantly run out of MEM and CPU. This will create issues to a live app that requires uninterrupted resources. That is why many Androids need to be constantly reset. A general Android rule is to have as much MEM and CPU as you can get on a device. That is the only thing you can do to prevent Android to hangup as it does. Or, the lower Android version the less MEM/CPU you may need.

I am no expert in Android. But years ago I was involved at www.xda-developers.com. My only current relevant experience is that to overcome Android strict limitations, I do run alongside Debian Linux within the same Android in my phones.

So I should received my GTcombo in next weeks or month. As I explained in the other thread:

Quote

And since I am buying one anyway, I will try to see if I can boot the current kernel ( boot.img/recovery.img ) to a working state , then see if i can "Kexec" to the external SDCard with a custom build enigma2. Just as I do run Debian from Android boot.img/recovery.img on old phones. if I do not get help from GTMEDIA with their official kernel sources then my future plan B will be that. It is just a personal project just to see how far I get.

While I wait for my GTCOMBO I will try if I can run E2 on another Android box I have MXQ PRO 4K. This has no DVB-S2 tuners but It may serve as a learning tool. I have NO Idea if it is possible. Do not take my word as something that can in fact be certain. There is more like 85% I will fail due to missing something.

Not that I know.

I only found a Russian language thread at 4pda-to, where they compare hardware

GTMEDIA GT Combo

CPU: Amlogic S905X3 Quad-Core ARM Cortex-A53, 18,400 DMIPS

GPU: ARM Mali-G31 MP2, 850 MHz

RAM: 2G DDRIII

ROM: 16G EMMC

MECOOL K5

CPU: Amlogic S905X3 Quad-Core ARM Cortex-A55

GPU: Mail-G31 MP2 GPU

RAM: 2 GB

ROM: 16 GB

But I see myself buying one GTCOMBO.

And since I am buying one anyway, I will try to see if I can boot the current kernel ( boot.img/recovery.img ) to a working state , then see if i can "Kexec" to the external SDCard with a custom build enigma2. Just as I do run Debian from Android boot.img/recovery.img on old phones. if I do not get help from GTMEDIA with their official kernel sources then my future plan B will be that. It is just a personal project just to see how far I get.

All

Uff!, my lack of knowledge, brought myself to a contradiction. I am soo sorry if I confuse others. let me explained.

I did search for oe-alliance click to read

And I quote

Quote

...Info: OE-Alliance offers the following: Makefile, Linux, driver, tools, common plugins and technical support among the teams....

I assume that any Enigma2 Team will make use of oe-alliance-core in their own building script. To my surprise is in the opposite. oe-alliance-core make will in fact build a full enigma 2 image. So It is seems now to me that my comets where wrong. The oe-alliance-core make can not build the core it self! without enigma2. In any case I will be studding this anyway.
